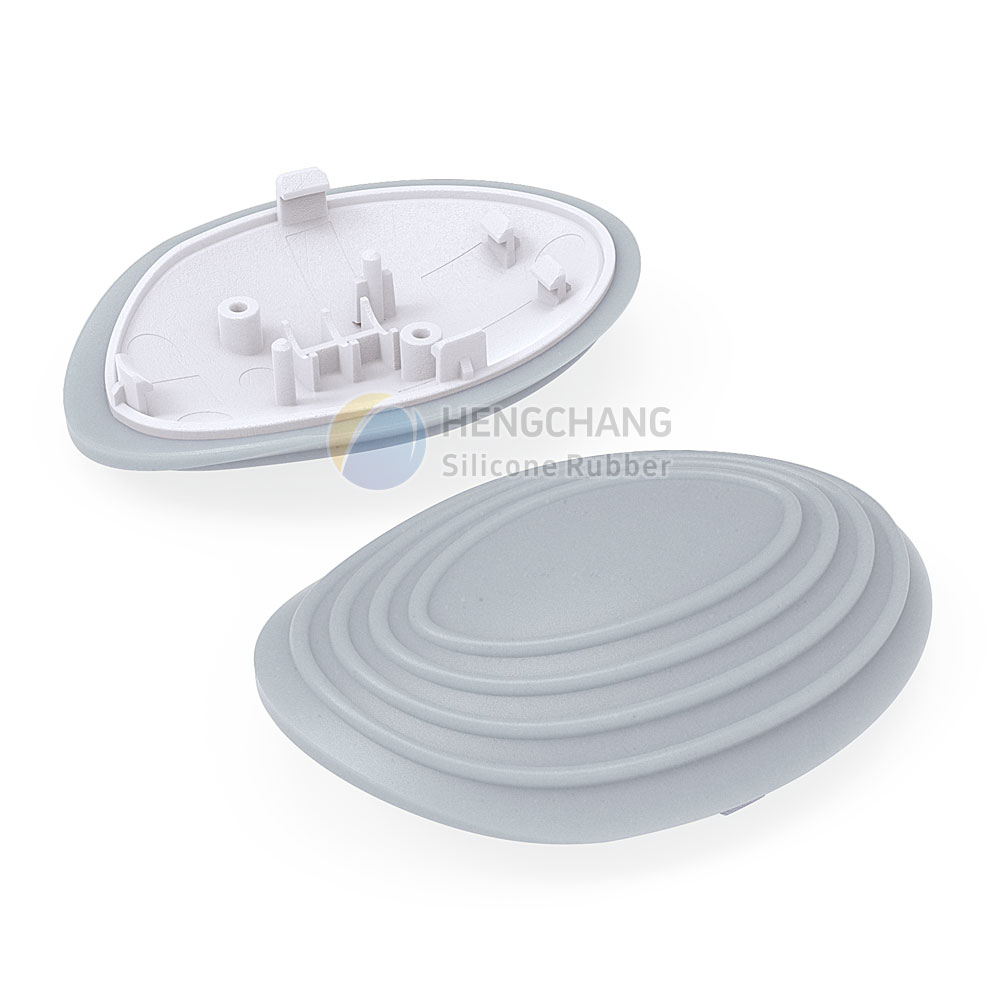

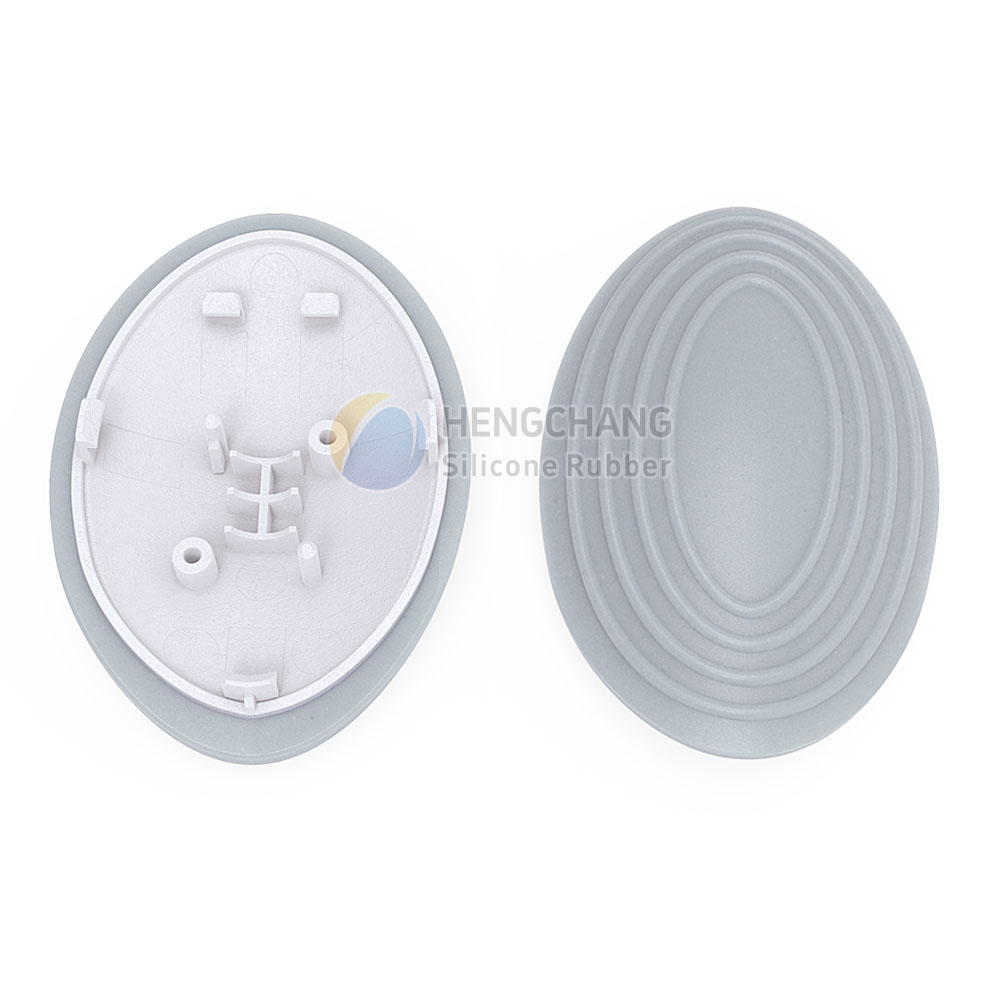

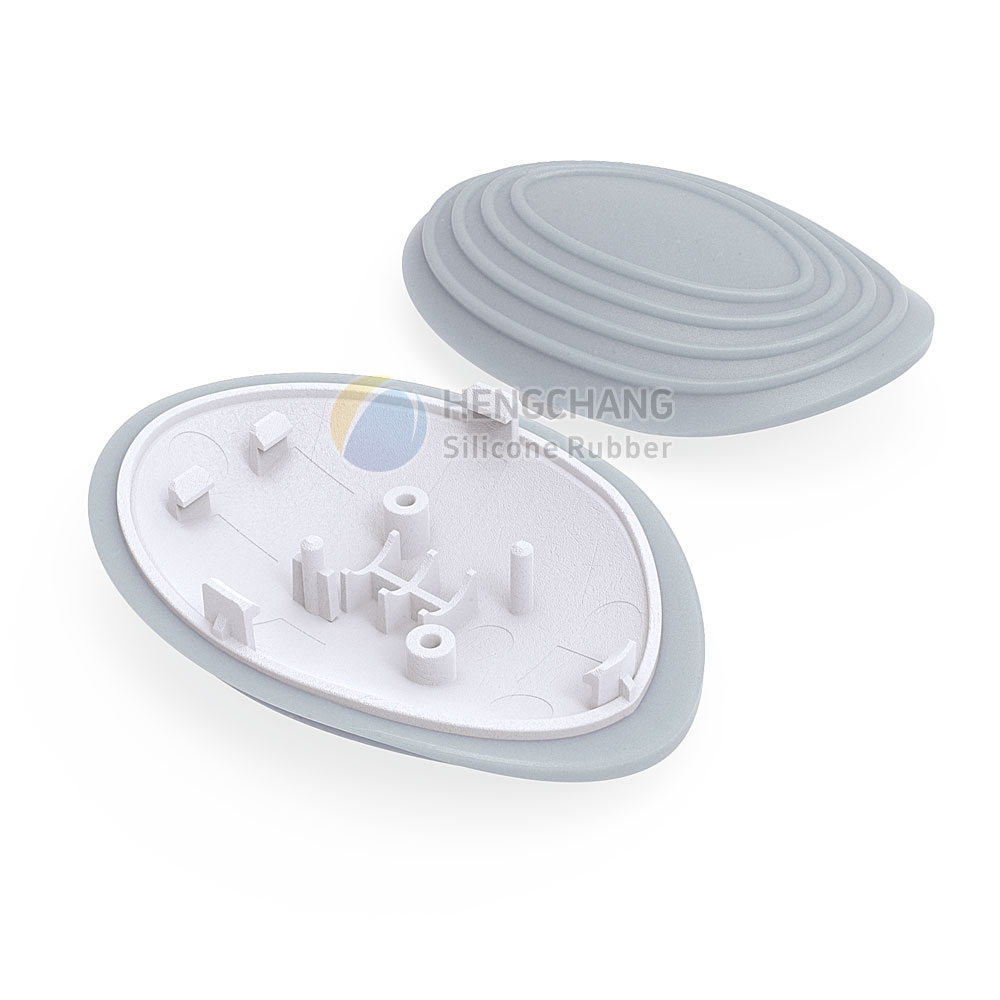

Custom molding instructions for Massager tip silicone + plastic integrated overmolding part
This massager tip is made using an integrated overmolding process of silicone and plastic. First, a plastic part with high structural strength is injection molded, then the plastic part is placed into a silicone molding die, and silicone material is injected to tightly bond the silicone with the plastic.
Due to the fact that during the silicone + plastic integrated overmolding process, the temperature of the injected silicone material exceeds 120°C, and the material pressure is ≥150kg/cm². Therefore, the material for the plastic part needs to be selected from plastics with higher hardness and high-temperature resistance, such as PC and nylon, or metal can be chosen as the material for the structural part.
Conductive silicone or rubber materials such as EPDM and NBR can also be chosen as flexible materials for wrapping to meet different usage requirements.
Silicone + plastic integrated overmolding is a relatively complex process. Even if you have completed the product design, we may propose some modifications and optimization suggestions based on the product’s shape, structure, materials, and usage requirements during the custom mold opening process, in order to successfully achieve silicone + plastic integrated overmolding. Therefore, we recommend that you keep in touch with us in a timely manner during the design process.
Hengchang Silicone has extensive experience in the customization, mold opening, and production of silicone + plastic integrated overmolding parts. We can provide you with fast and high-quality customized silicone sleeve services at competitive prices. Before the project starts, we will conduct a comprehensive assessment of your project and provide professional optimization suggestions to minimize later modifications, thereby quickly and accurately realizing the customization, mold opening, and production of silicone + plastic integrated overmolding.
