Rubber keypads Composition and Assembly Structure Diagram
Customization and mold making instructions for Rubber keypads

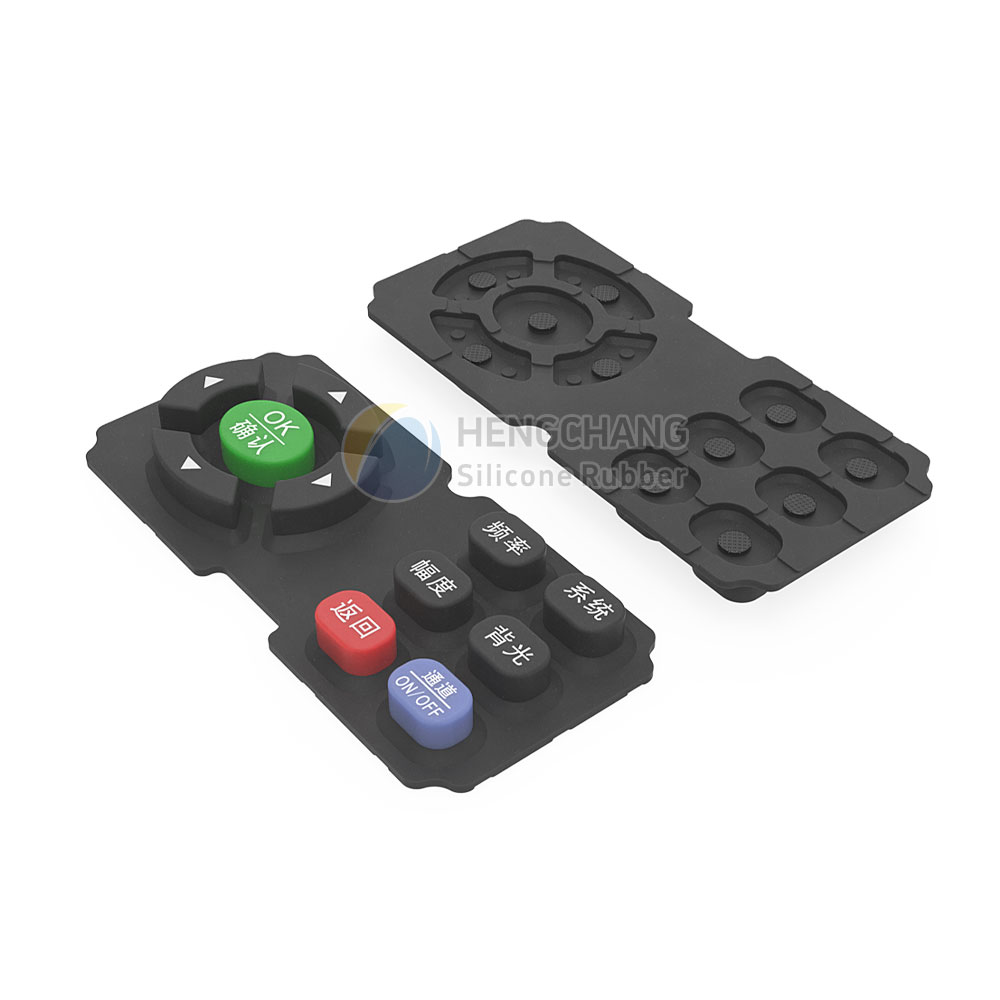

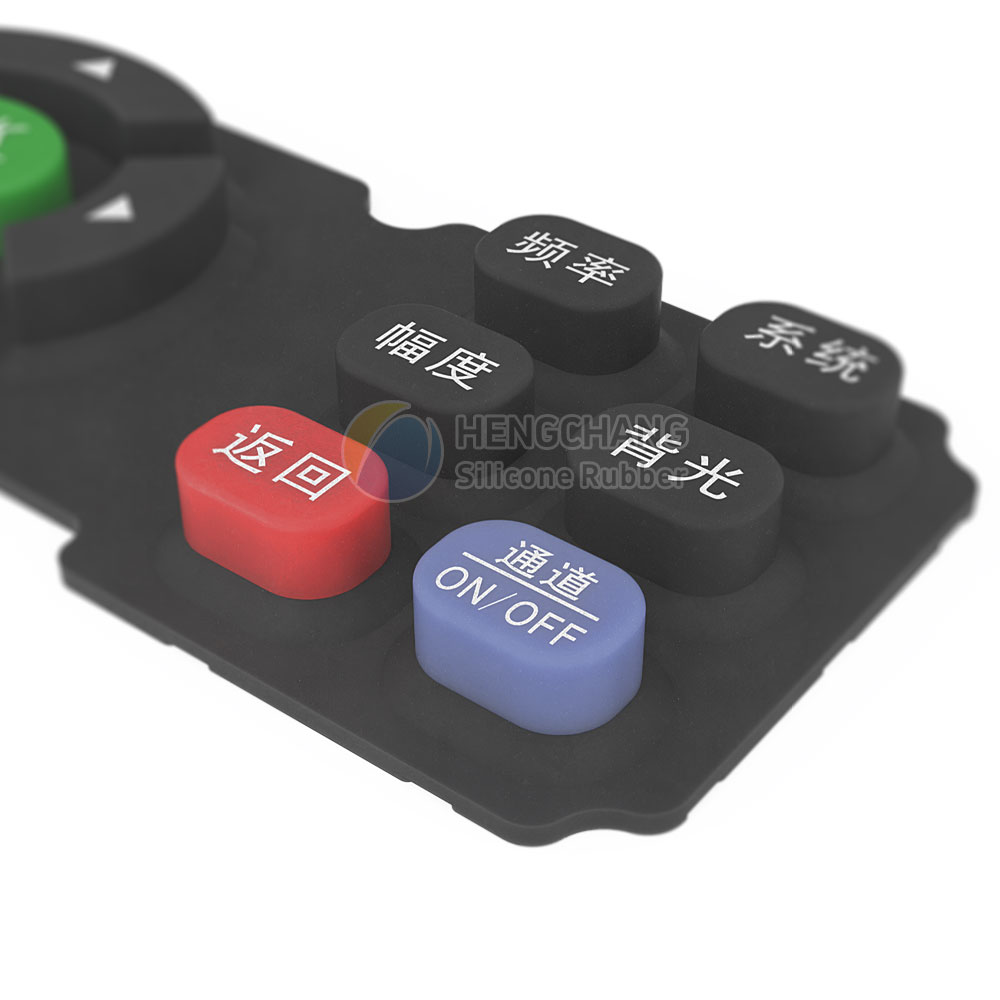

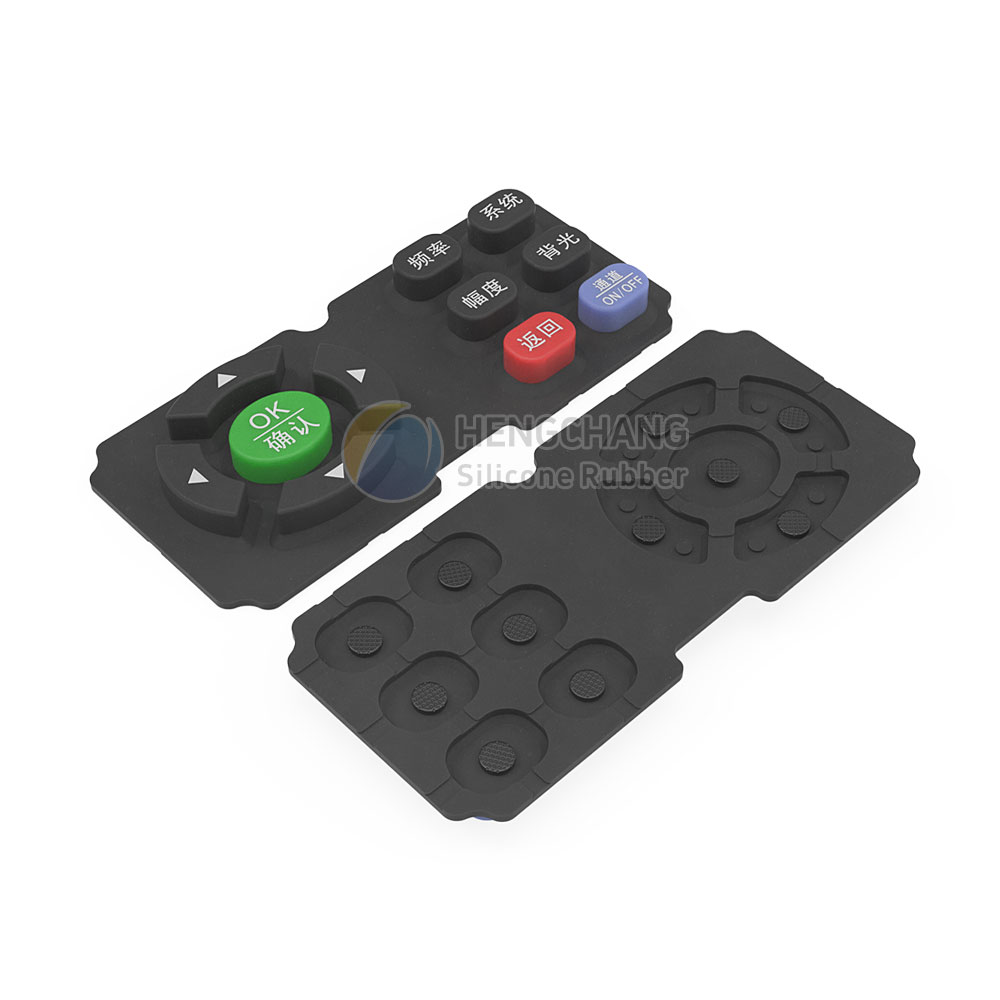

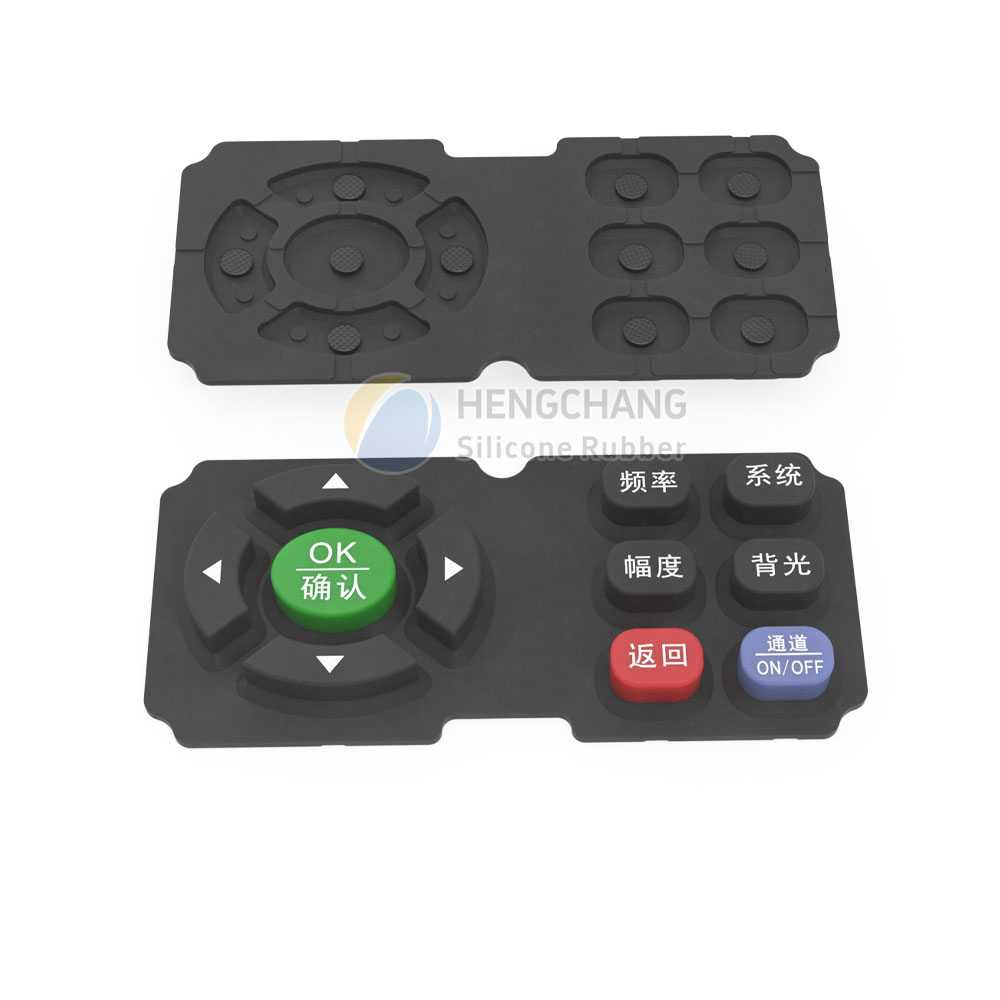

This rubber keypad combines four colors into one through a secondary molding process. You can integrate multiple colors or different hardnesses into one molding based on the actual appearance or functional requirements of the device.

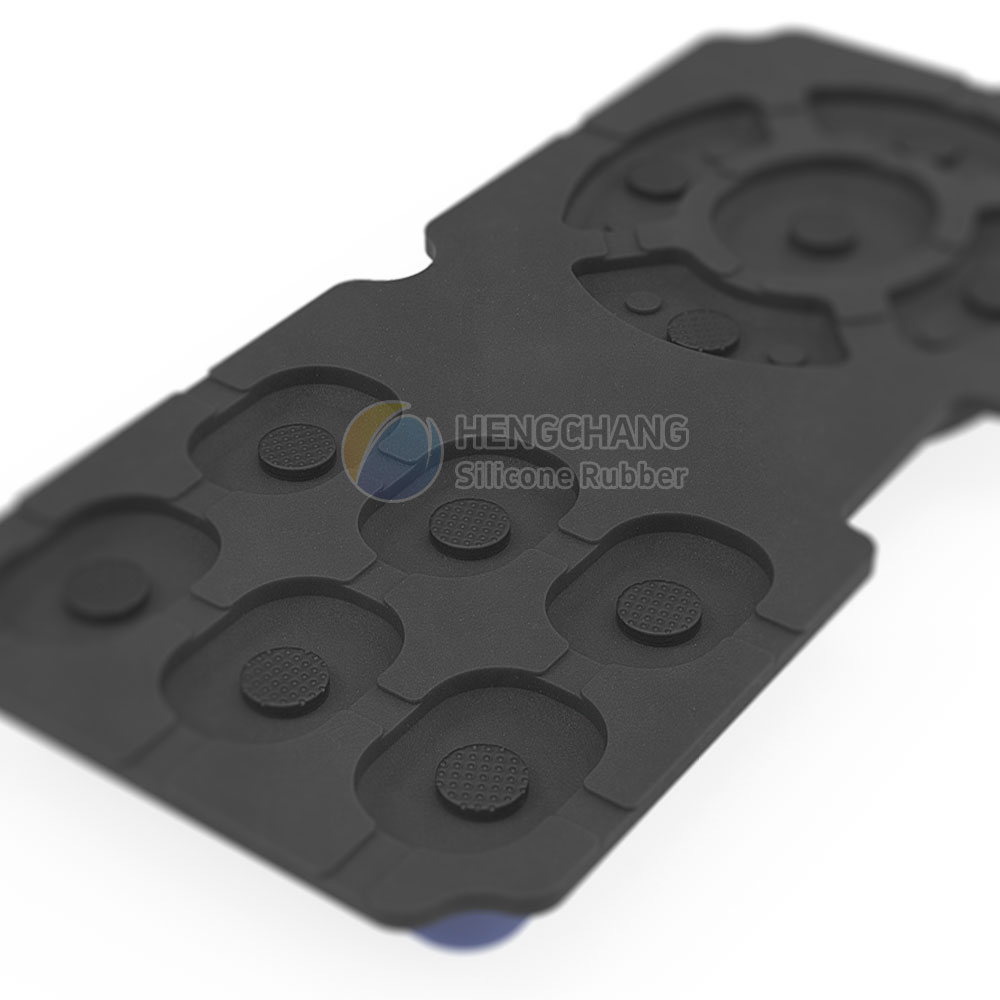

The main body of this rubber keypad is made of a soft elastomer with good insulation properties, namely silicone material. Conductive carbon particles are only placed at the bottom of the key body, making the bottom of the key body conductive within a small range and realizing a flexible conductive connection between the key body and the PCB contact pad. The advantage of this type of conductive rubber keypad is that the pressing stroke is usually more than 1mm, and the rebound is obvious, so users can get a good hand feel and obvious feedback when pressing the key body, and there is no noise during pressing.
In addition to screen-printed text and icons, the surface of the rubber keypad also supports spraying of colored inks, Hand feel paints, and wear-resistant PU paints and other coatings, to achieve a richer and more exquisite appearance, improve touch sensation, reduce dust adsorption, and enhance the wear resistance of printed text. It is also possible to create translucent characters and icons on the rubber keypad through a combination of spraying and laser engraving processes.
If your device is controlled by a dome switch or a touch switch, you can also customize a rubber keypad without conductive particles.
We can customize various types of rubber keypads suitable for various devices according to your requirements. The color, hardness, shape, structure and size, as well as the printed text, icons and coating on the surface, are all customizable.
Hengchang Silicone can customize rubber keyboards according to drawings, or customize, mold, and produce based on 3D output after samples.
If you are not familiar with the structural design or process selection of rubber keypads, you can also tell us your ideas and needs, and we can help you design, complete the customization, molding and production of rubber keypads.
Hengchang Silicone has extensive experience in the customization, mold making, and production of rubber keypads. We can provide you with fast and high-quality custom rubber keypads services at competitive prices. Before the project starts, we will conduct a comprehensive assessment of your project and provide professional optimization suggestions to minimize later modifications, thereby quickly and accurately realizing the customization, mold making, and production of rubber keypads.
