Silicone Button Composition and Assembly Structure Diagram
Basic Dimension Diagram

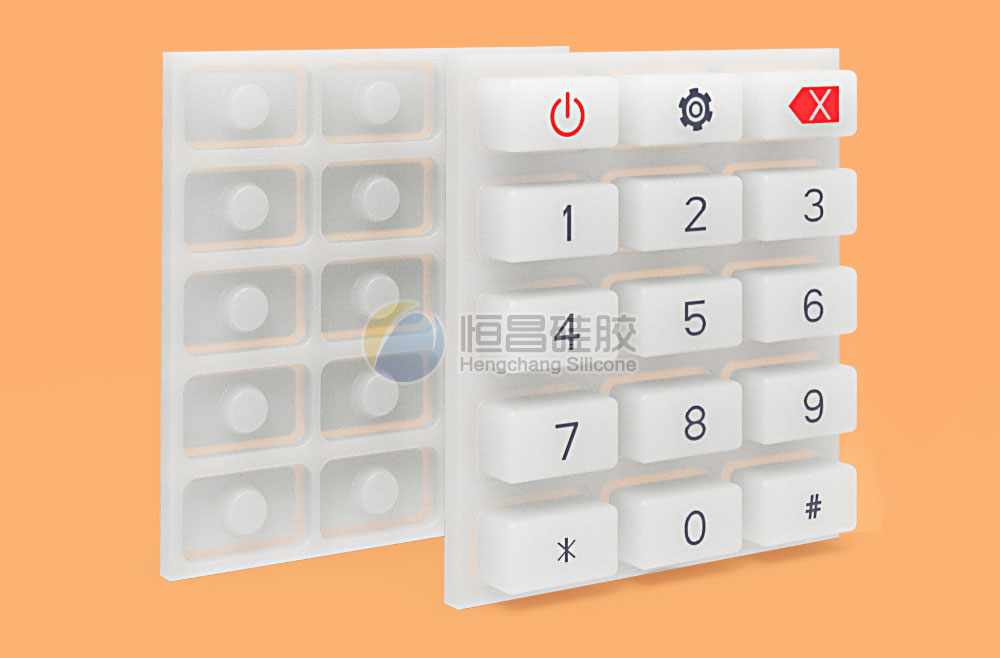

15-key Silicone Keypad suitable for numeric or password keyboards
15-key silicone keypad
3*5 key layout, rectangular shape
Customizable colors and imprinted text
Mold-free, off-the-shelf components
Supporting custom molding and production
Reference Price:0.30 USD/PCS
*This silicone button has an existing mold, so you can order without needing to open a new mold.
*The body color, printing color, and printing content of this silicone button can all be customized according to requirements.
*The shape and size of this silicone button are fixed by the mold. If you need to customize the shape, size, and structure, a new mold needs to be opened for customization.
*The above price is ex-factory price and does not include shipping and tax fees. Additionally, please note that the actual price may vary due to international exchange rate fluctuations.
Product Features：
High-quality silicone material, the surface of the silicone button supports decorative processes such as silk-screen printing, spraying, laser engraving, and glue dripping. This silicone button does not have conductive particles and needs to be used with a metal dome sheet.
Application Fields：
Applied to digital keyboards or password keypads of POS machines, handheld terminals, combination locks, instruments and meters, or any other devices.
Basic Parameters of Silicone Keypads
- Attribute Value
- Attribute Value
- Body MaterialSilicone
- Hardness60±5 Shore A
- Main ProcessMolding + Screen Printing + Coating
- Conduction ModeMetal Dome
- Key Travel0.5mm
- Volume Resistivity≥ 1012 Ω·cm
- Press Count≥1,000,000 Times
- Operating ForceDecided by Metal Dome
- Operating Temperature-30~160℃
- Storage Temperature-45~220℃
Contact Hengchang Silicone, and you will receive the following services:
More cost-effective silicone product development, customization, and production services.
Reliable quality of silicone rubber products.
One-stop service for customization, design, mold opening and production.
Professional pre-sales technical support.
Timely delivery, efficient order processing and after-sales service.
Resource sharing that interests you.
A reliable assurance of business and technological confidentiality.
The commitment of Hengchang Silicone:
Provide accurate quotation within 24 hours upon receipt of inquiry.
Provide free technical support, including silicone rubber product design and optimization, as well as usage optimization.
The fastest delivery for new mold development is 7 days for sample submission.
Bulk orders can be delivered with a minimum lead time of 10 days.
When you have after-sales needs, we will respond promptly within the same day and continue to follow up.
