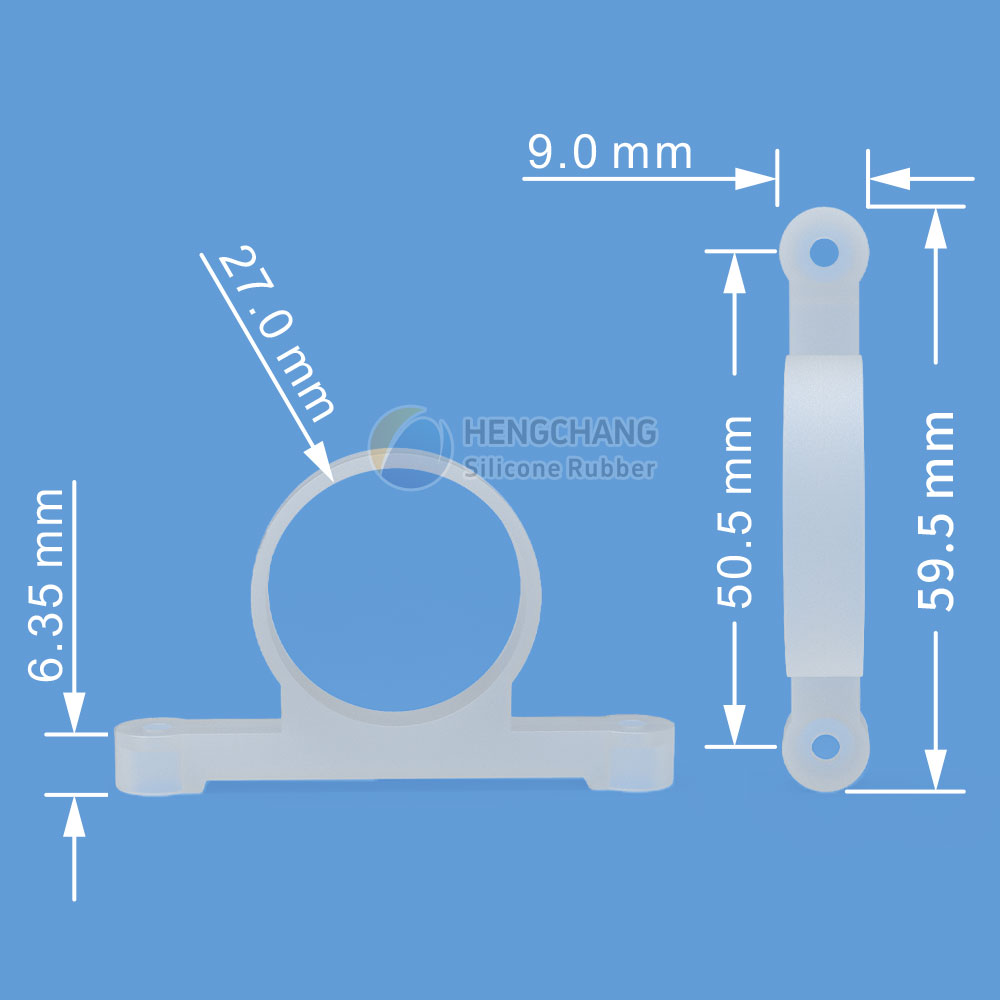

Basic Dimension Diagram
Need motor mounting bracket sleeve for other motor specifications? Contact us!

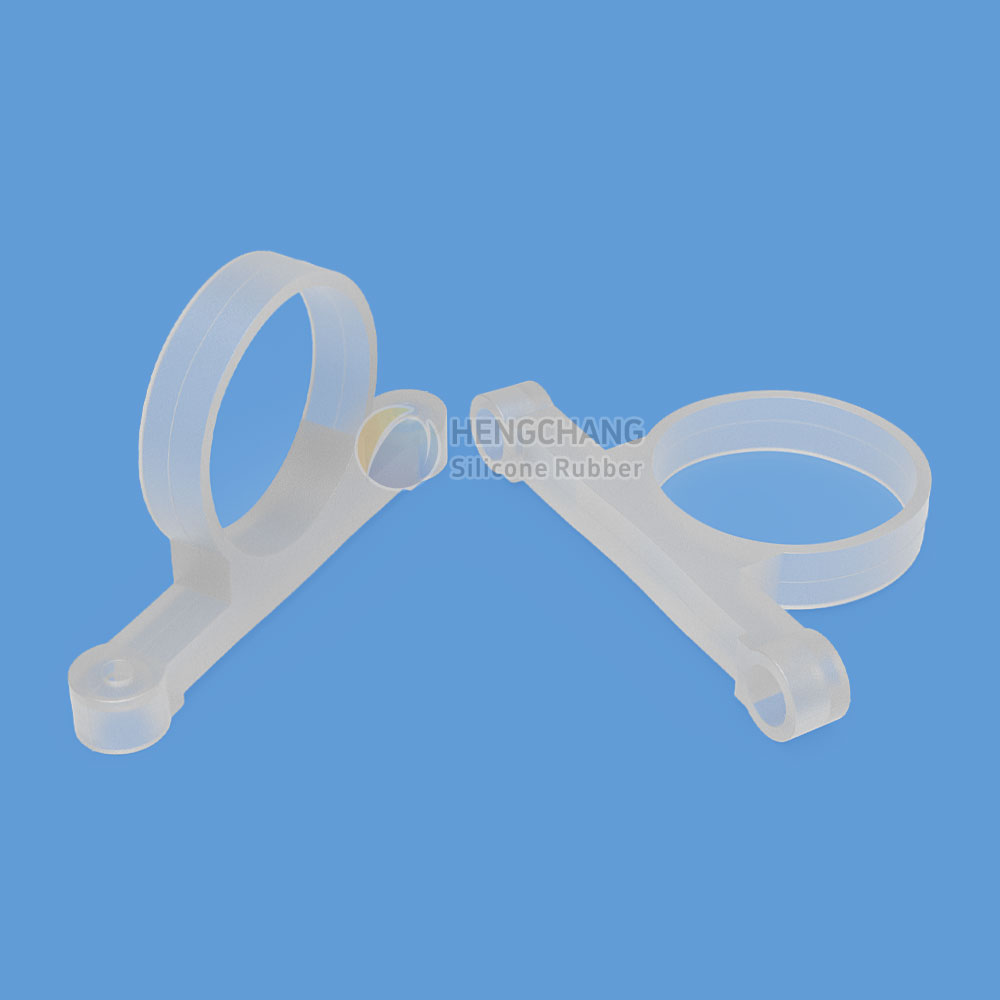

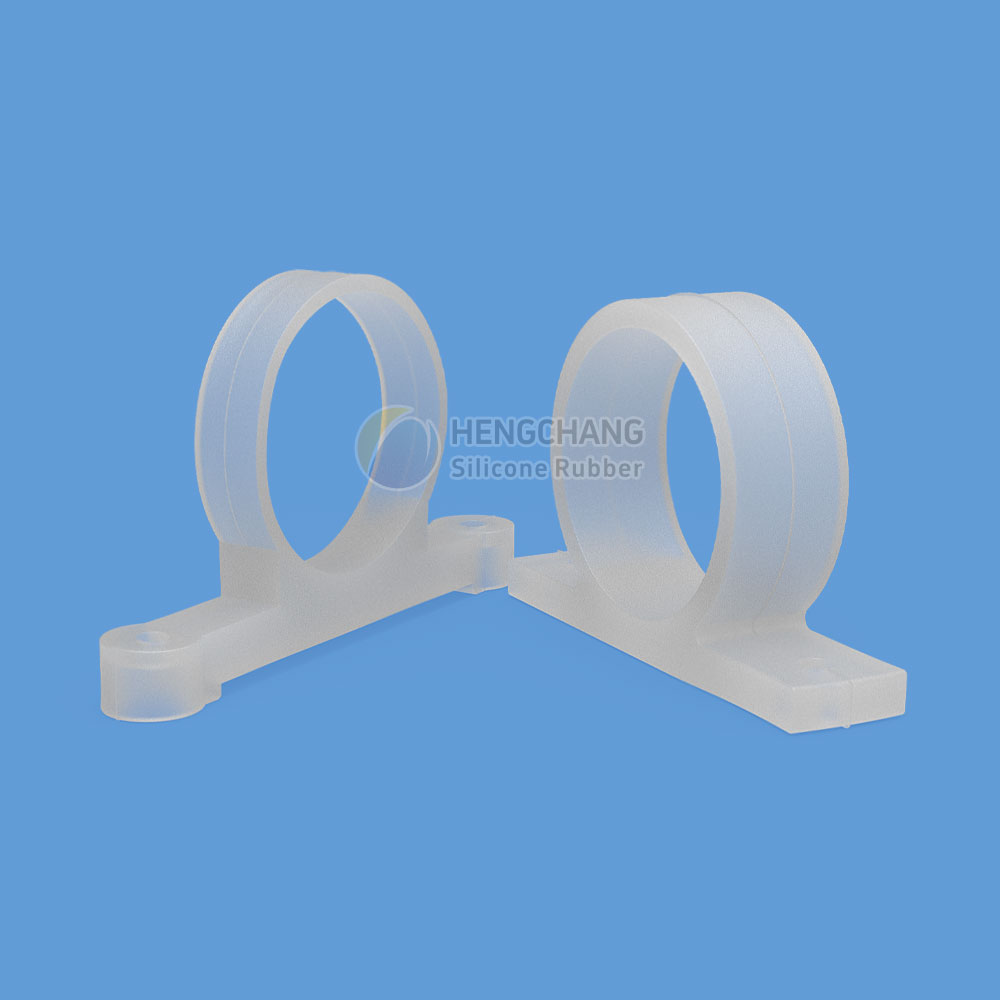

380 motor fixed shock absorption bracket Ø27mm silicone sleeve
Motor mounting bracket sleeve
Suitable for Ø27mm motors
Strong grip, excellent elasticity
Shock absorption and noise reduction
Cold and heat resistant, long service life
Customizable shape, size, and color
Reference Price:0.07 USD/PCS
*This Motor mounting bracket sleeve has ready-made molds available, so it can be ordered directly without the need for custom mold development.
*The products listed on this page are silicone rubber mounting sleeves for motor shock absorption and do not include accessories such as motors, water pumps, or air pumps.
*The shape and size of the motor mounting bracket bushings are fixed by the mold. Customization of shape, dimensions, or structure requires the creation of a new mold.
*The above price is ex-factory price and does not include shipping and tax fees. Additionally, please note that the actual price may vary due to international exchange rate fluctuations.
Product Features：
Made of 70A Shore hardness silicone material, it offers strong grip, excellent elasticity, and superior shock absorption. It is resistant to both cold and heat, capable of long-term use in temperatures ranging from -50°C to 200°C. Additionally, it is eco-friendly, non-toxic, waterproof, and anti-aging.
Application Fields：
Suitable for Ø27mm 380 or 365 water or air pump motors, providing flexible mounting, shock absorption, and reduced operational noise for the motor. Custom motor mounting, shock-absorbing, and noise-reducing silicone bracket sleeves in various specifications are available.
Basic Parameters of Silicone Keypads
- Attribute Value
- Attribute Value
- Basic DimensionØ27×59.5×9 mm
- Net Weight4 g / PCS
- Product ColorSemi-Transparent
- Default PackagingPE Bag in Bulk + Outer Carton, Customizable Packaging Available
- Body MaterialSilicone
- Hardness70±5 Shore A
- Main ProcessMolding
- Volume Resistivity≥ 1012 Ω·cm
- Operating Temperature-40~180℃
- Storage Temperature-50~200℃
